Introduction to Grid Safety and Current Transformers
Modern power systems demand high levels of reliability, stability, and safety. As electricity networks expand and become more complex, the importance of protective devices grows significantly. Among these devices, current transformers (CTs) play a vital role in ensuring accurate measurement and safe relay operation. One of the most efficient and widely used options is the bh-0.66 series ct for relay protection, designed specifically to enhance grid performance and fault detection.
Optimizing grid safety requires a strategic approach that combines accurate current sensing, reliable relay coordination, and robust equipment. The bh-0.66 series ct for relay protection offers all these features, making it a preferred choice in industrial, commercial, and utility applications.

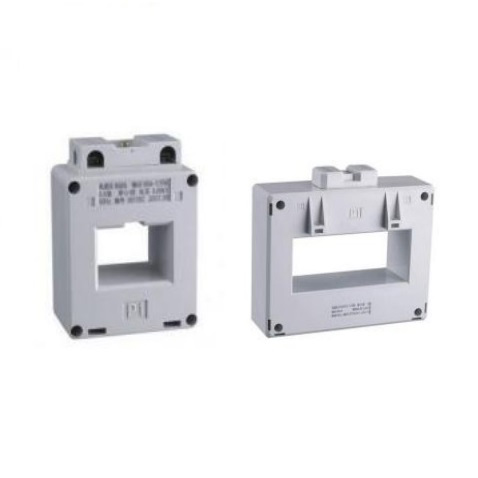

Understanding the Role of BH-0.66 Series CT in Relay Protection
Current transformers are essential components that step down high currents to manageable levels for meters and protective relays. The bh-0.66 series ct for relay protection is engineered to provide precise current measurement while maintaining insulation and safety standards.
Key Functions of BH-0.66 Series CT
- Converts high primary current into standardized secondary current
- Isolates measurement instruments from high-voltage circuits
- Supplies accurate signals to protective relays
- Ensures reliable fault detection and system stability
By delivering consistent and accurate current readings, the bh-0.66 series ct for relay protection helps relays respond quickly to abnormal conditions such as overloads, short circuits, and ground faults.
Key Features That Enhance Grid Safety
The bh-0.66 series ct for relay protection is designed with features that directly contribute to grid safety optimization.
High Accuracy and Stability
Accuracy is critical in relay protection systems. Even minor deviations can lead to incorrect fault detection or delayed responses. The bh-0.66 series ct for relay protection ensures high precision across varying load conditions, enabling relays to function effectively.
Excellent Insulation Performance
Safety in power systems heavily depends on insulation quality. This CT series is built with durable insulation materials that protect against electrical breakdown, ensuring long-term operational safety.
Compact and Reliable Design
Space constraints are common in electrical panels. The compact design of the bh-0.66 series ct for relay protection allows easy installation without compromising performance. Its robust construction also ensures reliability in harsh environments.
Wide Application Range
From low-voltage distribution systems to industrial setups, the bh-0.66 series ct for relay protection is adaptable to various applications, making it a versatile solution for grid safety.
Best Practices to Optimize Grid Safety
To fully leverage the benefits of the bh-0.66 series ct for relay protection, it is essential to follow best practices during selection, installation, and maintenance.
Proper Selection of CT Specifications
Choosing the right CT ratio and accuracy class is crucial. Engineers must consider:
- Load requirements
- Fault current levels
- Relay sensitivity
- System voltage
Using the correct bh-0.66 series ct for relay protection ensures that relays receive accurate signals, minimizing the risk of malfunction.
Correct Installation Techniques
Improper installation can compromise performance. Key guidelines include:
- Ensuring proper polarity alignment
- Securing connections to prevent loose contacts
- Avoiding exposure to excessive heat or moisture
A well-installed bh-0.66 series ct for relay protection guarantees consistent performance and enhanced safety.
Regular Testing and Calibration
Periodic testing is necessary to maintain accuracy. Over time, environmental factors and aging can affect CT performance. Routine checks help ensure that the bh-0.66 series ct for relay protection continues to operate within specified limits.
Coordination with Protective Relays
Effective relay coordination is essential for system protection. The CT must match the relay’s requirements to ensure proper fault detection and isolation. The bh-0.66 series ct for relay protection provides the accuracy needed for seamless coordination.
Common Challenges and How to Overcome Them
Despite its advantages, certain challenges can arise when using CTs in relay protection systems.
Saturation Issues
CT saturation can lead to inaccurate readings during high fault currents. To mitigate this:
- Select a CT with appropriate burden capacity
- Use high-quality models like the bh-0.66 series ct for relay protection designed to handle fault conditions
Wiring Errors
Incorrect wiring can result in faulty measurements. Ensuring proper labeling and following installation guidelines helps avoid such issues.
Environmental Factors
Dust, humidity, and temperature variations can impact performance. Installing the bh-0.66 series ct for relay protection in controlled environments or using protective enclosures can enhance durability.
Benefits of Using BH-0.66 Series CT for Relay Protection
Implementing the bh-0.66 series ct for relay protection in power systems offers several advantages:
Improved Fault Detection
Accurate current measurement enables faster and more reliable fault detection, reducing downtime and preventing equipment damage.
Enhanced System Reliability
With consistent performance, the bh-0.66 series ct for relay protection ensures that protective relays operate correctly, improving overall system reliability.
Cost Efficiency
By preventing faults and minimizing maintenance requirements, this CT series helps reduce operational costs in the long run.
Increased Safety
The combination of accurate measurement, strong insulation, and reliable design significantly enhances grid safety.
Applications in Modern Power Systems
The bh-0.66 series ct for relay protection is widely used across various sectors, including:
Industrial Facilities
Factories and manufacturing plants rely on stable power systems. This CT series ensures reliable protection against electrical faults.
Commercial Buildings
In commercial setups, maintaining uninterrupted power supply is crucial. The bh-0.66 series ct for relay protection supports efficient energy management and safety.
Utility Power Distribution
Power distribution networks require robust protection systems. This CT series plays a key role in maintaining grid stability and preventing outages.
Future Trends in CT Technology and Grid Safety
As power systems evolve, so does CT technology. Innovations are focused on improving accuracy, durability, and integration with smart grid systems.
The bh-0.66 series ct for relay protection is already aligned with modern requirements, offering compatibility with advanced monitoring and automation systems. Future developments may include:
- Integration with digital relays
- Enhanced real-time monitoring capabilities
- Improved resistance to extreme environmental conditions
These advancements will further strengthen grid safety and reliability.
Conclusion
Optimizing grid safety is a critical objective for modern power systems, and current transformers play a central role in achieving it. The bh-0.66 series ct for relay protection stands out as a reliable, accurate, and efficient solution for ensuring proper relay operation and system protection.
By selecting the right specifications, ensuring proper installation, and maintaining regular testing, power system operators can maximize the benefits of the bh-0.66 series ct for relay protection. Its ability to deliver precise current measurement, combined with robust design and wide applicability, makes it an essential component in enhancing grid safety.
